 GT-29-CCP Mux Connector

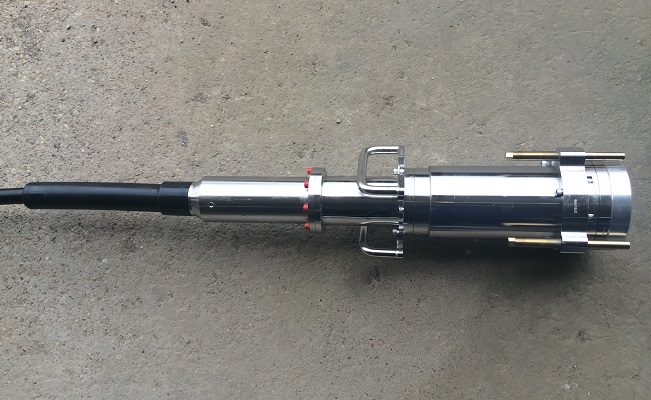

GT-29-CCP Mux Connector is an electro mechanical termination installed onto a double armored blowout preventer control cable. This cable connector plug (CCP), designed with a capacity of 25 control contacts and 4 power contacts, is fully pressure balanced to prevent any pressure differential and all conductors are independently sealed. It mates with the existing flange connector receptacle (FCR) used on the Hydril control system. It has proven to be the most reliable designed connector throughout the drilling industry since 1975 and its simplicity makes it the most reliable and easy to service. It has been successfully tested to 12,000 ft. in both dry and flooded conditions.


 Complete Line of PBOF Cable Assemblies & Connectors
We are proud to announce our complete line of connectors. We are now engineering and manufacturing our 4, 6 & 8 Pin PBOF Cable Assemblies & Connectors along with our 29 Pin CCP Mux Connectors. All are fully compatible with the pre-existing VCC connectors, but to a higher quality standard.

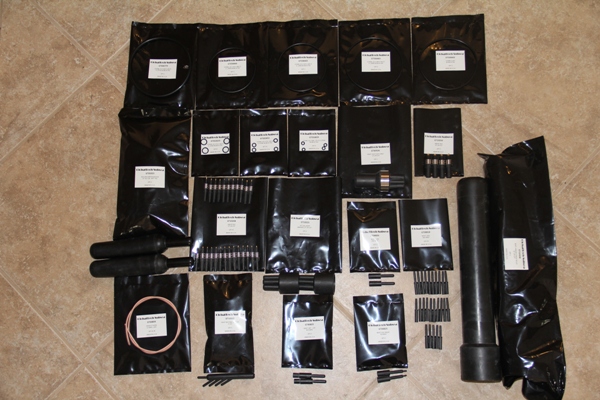

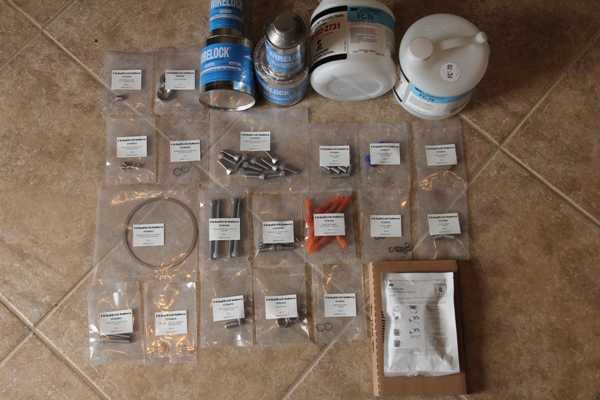

 GT-29-CCP Mux Connector Re-termination Kit
GT-29-CCP Mux Connector Re-termination Kit is available in the case the outer steel components of the Connector is reusable. It contains a full replacement set of all elastomer parts as well as all applicable metal components. It is fully interchangeable with the GT-29-CCP Mux Connector as well as the VCC-29-CCP Mux Connector and is field installable.


 Field Services

Qualified GlobalTech Subsea technicians are available with a 24 hour response time, 7 days a week for the following services:

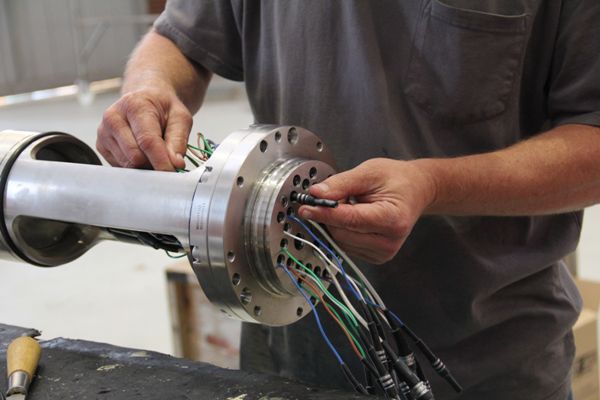

Re-terminations & Installations

Repairs, Maintenance & Training

Design & Engineering

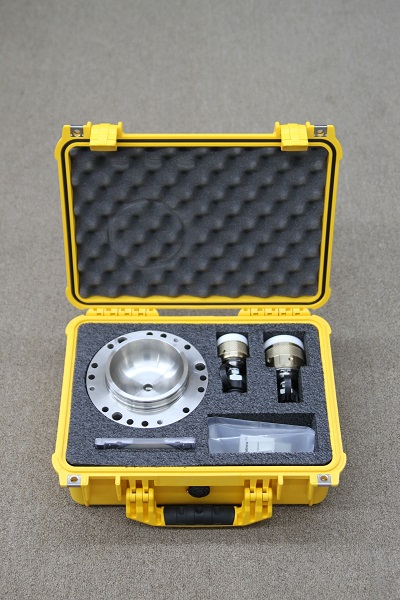

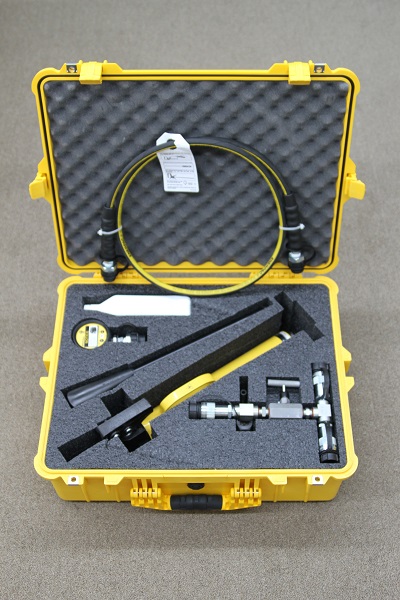

 FCR Test Kit for the Offshore Oil & Gas Industry
GlobalTech is proud to anounce that we are now offering a complete FCR Test Kit. The pressure test kit is designed to ensure the integrity of all the FCR type connectors and to be portable for field pressure barrier testing. The pressure test kit works universally for all FCR type connectors up to 5,000 psi.
